IISView - generate web site traffic statistics for IIS
IISView is a website statistics package for web hosts giving
detailed web traffic analysis by analyzing your web log.
Aims of IISView
Simple executable that can run every night and produce a simple set
of static web pages representing the traffic seen on the web site.
The web server supported is Microsoft's IIS.
Introduction to web server logfile analysis
There are two main types of web analytics technologies. One uses
embedded HTML tags to trigger counters, typically on a 3rd party
site. This popular technique has some disadvantages such as
requiring changes to your web pages, slowing down the page display
as the links to the analytics are executed and sometimes fees to be
paid to the analytics provider.
IISView uses the other common technique of analyzing the web logs
produced by the web server. These can contain information about
the visitor, and how they came to visit your site. IIS records all
hits on your site and can include time, URL visited and what page
or site referred them to you. In the case of search engines this
tells you what keywords the user keyed into the search query. In
contrast to using a 3rd party page tagging, there are no monthly
service fees. If you don't run your own IIS web server, then your
ISP may allow you access to the logs. IISView can make use of remotely collected logfiles. If you
don't have a way of accessing the web logs for your server, then
IISView is not for you. Wikipedia
has a section on Web analytics.
IISView analyzes the logfiles produced by IIS and collates
traffic statistics in various catrgories. Some logging features
are not switched on in IIS by default, but these can be switched
on easily in the "Internet Information Services" "Administrative Tool".
Enabling referer, time taken and bytes sent in the logs make for
much more effective analysis results. IISView will report which
countries, and companies or service providers your visitors come
from. IISView will identify the busiest time of day, or days of
the month for your site, and identify when the response time you
are providing to your customer becomes poor, or when your
customers are experiencing errors from your site.
There is a wealth of information in the IIS weblogs. IISView will
help make sense of it all.
Features of 'usage' pages
- Automatically updates (e.g. nightly)
- Summary by month of hits, KBytes,
visitors
- For each month profile by hour and by day of hits, KBytes,
error rates and server response time
- Monthly profiles of pages visited, file types, visitors,
referrers, search engine keywords, browsers used including which
are robots
- Busiest hour of the month compared to averages, worst user
response time experienced
- Error rates and reasons
- Broken link reports
- Keywords from search engine referrals
- Spider/robot traffic component
- Visitor breakdown by country/domain and by company/ISP
- Profile visits by hits, length of stay, entry/exit pages,
non-robot.
- Breakdown by browser type (e.g. IE, Firefox, Opera..), and by
Operating System
- Operates with the IIS log files already on your server and
doesn't require modification of pages to include references to
other sites. (There is no limit on the number of pages profiled
and no fee to count the pages. There are no on-going costs or
expenses.)
- GMT vs local timezoning support. (i.e. to match the IIS "Use
local time for file naming")
- (optionally) report usage by logged in users
- Support for multiple web sites hosted on the same IIS
installation
- (optionally) exporting to comma separated variables format for
doing further analysis
- (optionally) on-demand reports for date ranges within a month
- Filtering of input records
Sample generated pages
Here are some sample generated usage pages
produced by the IISView analysis of actual web logs .
Installation instructions
Before you download, have a read of the
instructions, since there is presently no wizard.
System requirements
- Windows - 2000, XP(Pro), 2003 Server,
Vista(Business/Ultimate), 2008 server.
- 10Mb free disk space.
- Web browser - one of Internet Explorer, Firefox, Safari, Opera
- Administration privileges for installation and configuration,
normal user for operation.
Upgrading
If you are upgrading from an earlier version, please uninstall the
earlier version first -
- Use "Control Panel → Add or Remove Programs → IISView",
- delete History.txt from the generated files directory (e.g. C:\InetPub\wwwroot\Usage),
- Install as below,
- run "Catch-up" to regenerate the preceding year's history.
Step by step
Before installing IISView, please take a Windows System Restore
Point so that if you happen to have a dependency on a particular
version of a DLL that is updated, you will be able to revert. Please
read carefully any questions raised by the installer about updating
system libraries. Take care to never downgrade a library to an older
one provided with IISView.
What you have downloaded is a WinZip self installer for IISView.
Please Save and virus scan on your own system before "Run".
"Run" for the "Unknown Publisher" warning
Run the Self-Extractor part of the installer "Setup" / "Unzip"
Proceed with the install as below.
Post-installation configuration
Run IISView.exe (interactively)
- Start → All Programs → IISview → IISview
- For reference also start the IIS administration tool
Start → Control Panel →
Administrative Tools → Internet Information Services

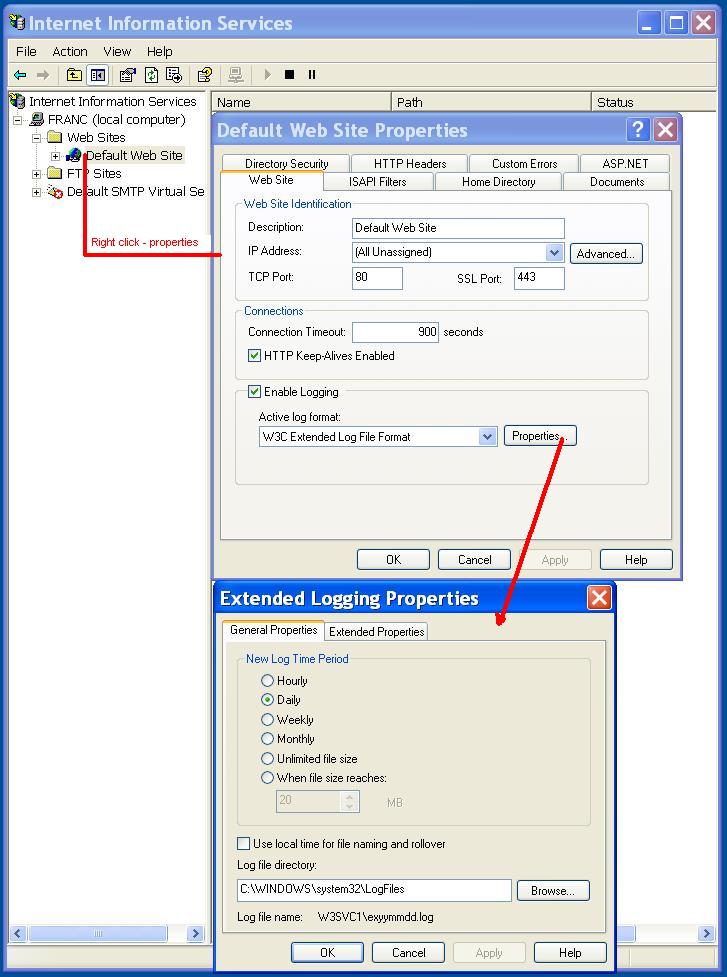

- Select the WEB log type (For IIS run up Internet Information
Services, select _the_ website, and click properties. The "Web
Site" tab has an Active log format. IISview supports W3C format.
Logging must be enabled.
In IIS7 under Vista, the GUI for configuring the items logged is
not provided. However there is an add-in available, Logging
UI for IIS 7.0 on Windows Vista.
In IISView
- Select the file location where "Log file directory" is found.
- Select the directory for the usage statistics to be published
from. Simplest option is to create a directory under the "Home
Directory" "Local Path"
e.g. C:\InetPub\wwwroot\Usage
(Do not choose the root folder for your web site or some of your
files will be overwritten by IISView!)
However if you want to put it elsewhere that is fine, but you
will need to create a "Virtual Directory" under the web site.
(You will get errors if you don't create the standard directory
initially, but after the first save all will be OK).
- Click "Catch-up" to
process all the existing log files. Normally just this months
files are processed. Progress is shown in the lower left section
of the window.
- Check that the initial catch up has created a set of pages.
- Select a time of day to generate the reports including the
preceeding day. (e.g. just before midnight). Enter the
desired time and "Add". The job will now appear in the Control Panel → Scheduled Tasks
(An alternative is to
use the Windows task scheduler.)
- You will be prompted for the username and password for the
scheduled task to be run as. This should be you!
- Just let it run in the background under the scheduled task,
and the usage web pages will be automatically updated.
- Remember if you change your password, then you have to go into
all your scheduled tasks, like IISView, and updated the password
in the task credentials.
Special notes for IIS7 on Vista and Windows Server 2008.
On Windows Vista (IIS7) the log file locations have moved and you
will also need to enable read permissions for user executing
the scheduled task. The log files are now in C:\Inetpub\logs\LogFiles\W3SVC1.
This will have to be readable by the windows user running
IISView e.g.
cacls C:\inetpub\logs /E /G user:R
Additionally you will have to set the permissions (or just
ownership) on the Usage directory to allow read for web server, and
full control for the user executing the scheduled task.
Multi-site support
IISView can support IIS servers that run multiple web sites from the
same installation. An IISView "site" has a simple one word name that
is used to name the configuration of the LogFile and output
directories etc. Start IISView using the multi-site option
Start → All Programs → IISview → IISview (Multi-site)
The default IISView site is "INI". To add additional
configurations, enter a site name and Add. Subsequently this site
name will be available in the pull-down list, which you can then
select. The configuration looks like above, but the site name
appears on the Configuration label, event log trace, and in the
title of the usage pages.
On Demand Reports
The first of new on-demand reports allows you to look at a specific
date range within a month over the last few years. So if you
introduced a campaign on a particular date, you can see how the
traffic looked before and after. The "Custom" report will appear in
the same folder as other usage reports, but will be named with the
"Custom" name you enter, Start with the "On Demand Report" button
Select the start and end days, month and year and press "Go". Progress through the report
generation is shown in the lower left of the main configuration
window. When complete, the report will be available in the Usage
folder and named Custom.htm.
Command line options
IISView can be started from a command prompt. The available options
are
- /BATCH
- Do not show the configuration window, and process the log
records for the current month. This is used to perform the daily
update.
- /CATCHUP
- Do not show the configuration window. Update the usage reports
with log files for the previous year.
- /LISTSITES
- Select the site to be configured from the list of currently
available sites, or a new site.
- /SITE=siteName
- Configure or process logs for "siteName" instead of the
default site (INI).
- /VERSION
- Display the version of IISView.
Input filters
Site reports can be customized to exclude log records, or include
specific log records based on the values of the IIS fields. IISView
looks at each record from IIS and applies the filter before adding
to the statistics. On the main configuration window select "Filter out records".
Press "Add" for a new
filter, or delete or edit an existing filter rule.
The fields that can be filtered are :-
- Client IP
- Method (GET/PUT etc)
- Referrer
- HTTP Status (200/404 etc)
- Query
- URI (the file being served)
- User agen (i.e. the browser)
The pattern the field matches allows use of the following
expressions :-
?
|
Match any single character
|
*
|
Match zero or more
characters. as in *robot*
|
[list]
|
Any single character in list
e.g. [a-zA-Z]
|
[!list]
|
Any single character not in
the list
|
The filter name should describe the reasoning for the filter, but an
automatically generated name is supplied if left empty.
If you want to have reports with different filters applied or with
no filters, use the multi-site facility.
Download IISView
IISView can be evaluated for 3 months. Without installing a license,
IISView will operate increasingly slower after this time.
To be notified of new versions of IISView, receive an email when this page changes.
Alternatives
Suggestions and bugs
All suggestions and bug reports should be submitted to David Horton.
If the statistics that you want to see are not present, or are zero
or blank, it could be
- I haven't implemented them yet,
- they aren't switched on in the IIS logging. Try enabling in
Extended Properties in IIS.
Refer to the Windows Application Event Log for diagnostic messages.
Long run-times have been observed where
- the list size is configured large, and there are a lot of
different visitors to the site. The reverse DNS lookup on each
IP address is time consuming. (Try reducing the list size).
- there is a large and complex traffic profile. (Long lists are
not handled as efficiently as may be desired). All the log files
for a month are reprocessed each day, so this gets slower
towards the end of the month. However previous months are not
regenerated until next year. (Try running in the early hours of
the morning, or when the CPU load doesn't affect others.)
On windows server 2008 the /BATCH overnight task reports errors in
the Windows event viewer, but runs fine from GUI.
- Open the job in the task scheduler and confirm the password is
current for the user.
- While there, change the "Configure for:" from "windows xp or
2003 server" to "Vista and Server 2008"
Updates in this release
- (Slight) improvements to non-English display
- Javascript to allow more compact report (in progress)
- Filtering and statistics by sitename and host (to be done)
- Introduction of license (to be done)
- Site navigation tracking (to be done)
