Upsilon UPS SNMP agent extensions for Linux

The Upsonic Power UPS have a very neat little serial port controlled UPS. The control software that comes with it is an application called Upsilon. This includes a mode for monitoring a remote UPS via SNMP. The device monitored uses the  UPS MIB. Unfortunately the Upsilon daemon, doesn't seem to report the UPS MIB. If it did then when you add a second Linux box to the UPS, you could use the remote mode to shutdown the second server based on the state of the server with the UPS attached.

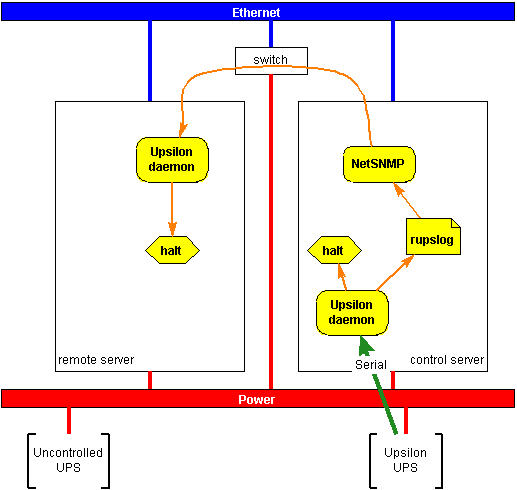

remote control diagram

Configuring Linux SNMP extension to provide UPS MIB

Script to implement MIB extension

(refer man page for snmpd.conf).
The crux of the code looks at the last line of the Upsilon log file, and if it is something that indicates that the power has failed then reports the "Input Voltage" as 0. Should power recover before shutdown, another message is written to the file, and the value is restored.

Create the file /etc/upsilon/snmpd.sh
#!/bin/sh
# Written by David Horton 2-Oct-2005
#echo `date` " : " $* >> /tmp/ups.log
if [ "$1" != "-g" ]
then
        exit 0
fi
case "$2" in
.1.3.6.1.4.1.935.1.1.1.3.2.1.0)
# upsSmartInputLineVoltage
echo .1.3.6.1.4.1.935.1.1.1.3.2.1.0
echo integer
if tail -1 /etc/upsilon/rupslog | grep 'System will be shut down' > /dev/null
then
        echo 0
else
if tail -1 /etc/upsilon/rupslog | grep 'AC Power Fails' > /dev/null
then
        echo 0
else
        echo 2400
fi
fi
;;
.1.3.6.1.4.1.935.1.1.1.1.1.1.0)
# upsBaseIdentModel
echo .1.3.6.1.4.1.935.1.1.1.1.1.1.0
echo string
echo "PCP600 $*"
;;
# upsBaseBatteryStatus
.1.3.6.1.4.1.935.1.1.1.2.1.1.0)
echo .1.3.6.1.4.1.935.1.1.1.2.1.1.0
echo integer
# unknown(1) batteryNormal(2) batteryLow(3)
echo 2
;;
# upsSmartOutputVoltage
.1.3.6.1.4.1.935.1.1.1.4.2.1.0)
echo .1.3.6.1.4.1.935.1.1.1.4.2.1.0
echo integer
echo 2400
;;
# upsSmartOutputFrequency
.1.3.6.1.4.1.935.1.1.1.4.2.2.0)
echo .1.3.6.1.4.1.935.1.1.1.4.2.2.0
echo integer
echo 500
;;
# upsSmartOutputLoad
.1.3.6.1.4.1.935.1.1.1.4.2.3.0)
echo .1.3.6.1.4.1.935.1.1.1.4.2.3.0
echo integer
echo 100
;;

esac
exit 0

Configure the Linux NETSnmp to run the script

Configure /etc/snmp/snmpd.conf to include the following sections. (Some context is included).
view    systemview    included   .1.3.6.1.2.1.25.1.1
# Power management Upsilon
view    systemview      included        .1.3.6.1.4
#view   systemview      included        .1.3.6.1.4.1.935
####

and at the very end

# Hacked support for Upsilon MIB
pass .1.3.6.1.4.1.935 /etc/upsilon/snmpd.sh
Then restart the snmpd service.

(Preferred remote action method)

The better method is to use a remote shutdown command. This used to be easy with remsh, but ssh is more complicated. Note that the command has to work unattended, and hence you can't enter a password/phrase.
e.g. to shutdown a Solaris server (wafer) on the network using remsh -:
Put this in /etc/upsilon/preshut.bat
# The commands in this file will be executed before the system halt.

echo "Executing preshut processes ..."

sync
sync

nohup /usr/bin/rsh wafer /usr/sbin/shutdown -y -i 5 now < /dev/null  > /dev/null  2>&1 &


David Horton - 3-Oct-2005
